Rally #22-1-4509
Baxter / Hillrom / Welch Allyn #DS45-09
Silver Series DS45 Integrated Aneroids (1/EA)

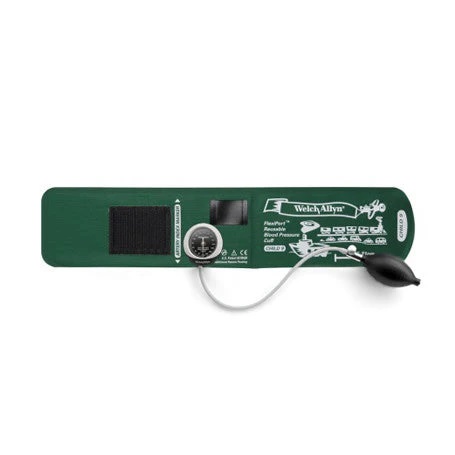

Welch Allyn DuraShock DS45 Integrated Aneroid Sphygmomanometer; Gear Free, Shock Resistant, Laser Engraved Dial, 10-Year Calibration Warranty; Premium Inflation Bulb and Valve; Size-09 Child, FlexiPort Reusable, 1-Tube Cuff.
Features
- Gear-free DuraShock technology
- Certified accuracy to +/- 3 mmHg
- Unique integrated, cuff-mounted design
- Can withstand 30" drop
- 360° Gauge rotation for easy viewing
- Gauge snaps directly into cuff for quick cuff changes
- Laser-engraved dial face for accuracy
- 10-year calibration warranty
- Latex-free
CAUTION: U.S. federal law restricts this device to sale by or on the order of a physician or licensed healthcare practitioner. This device should be used by trained personnel.
Note: Welch Allyn non-automated sphygmomanometers are contraindicated for neonate use.
For the State of California:
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
×
Rally # | 22-1-4509 |
Manufacturer # | DS45-09 |
GTIN | 00732094084818 |
Brand | DuraShock® |
Manufacturer | Baxter / Hillrom / Welch Allyn |
Country of Origin | Unknown |
Application | Aneroid Sphygmomanometer Unit |
Type | Integrated |
Display Type | Dial Display |
Power Source | Manual Inflation |
Size | Child Cuff |
Number of Tubes | 1-Tube |
Target Area | Arm |
UNSPSC Code | 42181601 |
Usage | Reusable |
User | Child |
Latex Free Indicator | Latex-free |
Warranty | Ten Year Warranty |
Accuracy | ± 3 mm Hg. |
Operational Range | 0 to 300 mmHg |
Displayed Range | 0 to 300 mmHg |
Indication Type | Radial Scale |
Scale Graduation | Increments of 2mmHg |
Pointer Movement | No stop pin |
Pressure Generation | Bulb |
Pressure Reduction | Air release valve |
Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
Storage Relative Humidity | 15% to 95% (noncondensing) |
Operating Temperature | 10 °C to 40 °C (50 °F to 104 °F) |
Operating Relative Humidity | 15% to 90% (noncondensing) |
×
Welch Allyn DuraShock DS45 Integrated Aneroid Sphygmomanometer Configurations
Welch Allyn DuraShock DS45 Pocket Aneroid Sphygmomanometer Configurations
Welch Allyn DuraShock DS45 Integrated Aneroid Sphygmomanometer Configurations
DS45 | Gauge Only, Requires Adapter for FlexiPort Cuff Connection |
DS45-09 | Premium Inflation Bulb and Valve, Size-09 Child, FlexiPort Reusable, 1-Tube Cuff |
DS45-10 | Premium Inflation Bulb and Valve, Size-10 Small Adult, FlexiPort Reusable, 1-Tube Cuff |
DS45-11 | Premium Inflation Bulb and Valve, Size-11 Adult, FlexiPort Reusable, 1-Tube Cuff |
DS45-11C | Premium Inflation Bulb and Valve, Zipper Case, Size-11 Adult, FlexiPort Reusable, 1-Tube Cuff |
DS45-12 | Premium Inflation Bulb and Valve, Size-12 Large Adult, FlexiPort Reusable, 1-Tube Cuff |
DS45-MC | Premium Inflation Bulb and Valve, Four-Cuff Kit: Size-09 (Child Print) to Size-12, FlexiPort Reusable, 1-Tube Cuffs |
Welch Allyn DuraShock DS45 Pocket Aneroid Sphygmomanometer Configurations
DS45A | Pocket-Gauge Adapter, Gauge Only |
DS45-11CB | Premium Inflation Bulb and Valve, Size-11 Adult, Reusable (Two Piece), 2 2-Tube Cuff |
DS45-12CB | Premium Inflation Bulb and Valve, Size-12 Large Adult, Reusable (Two Piece), 2-Tube Cuff |
DS45-13CB | Premium Inflation Bulb and Valve, Size-13 Thigh, Reusable (Two Piece), 1-Tube Cuff |
×
Accessories and Parts
Accessories and Parts
1DSAL | FlexiPort Blood Pressure Cuff Integrated Gauge Adaptor, Large |
1DSAS | FlexiPort Blood Pressure Cuff Integrated Gauge Adaptor, Small |
5082-159 | FlexiPort Blood Pressure Cuff Wash Cap |
5082-257 | Pocket Gauge Adapter for DuraShock DS44 and DS45 Integrated Aneroid Sphygmomanometers |
5085-07 | Polyester Zipper Case for DS45 and Classic Pocket Aneroids |
5086-01 | Welch Allyn Tycos Premium Inflation Bulb; Small; Black |
5086-03 | Welch Allyn Tycos Premium Inflation Bulb; Large; Black |
5087-01 | Blood Pressure Air Release Valve |
×
