Rally #52-4-1690
Baxter/Hillrom/Welch Allyn #01690-200

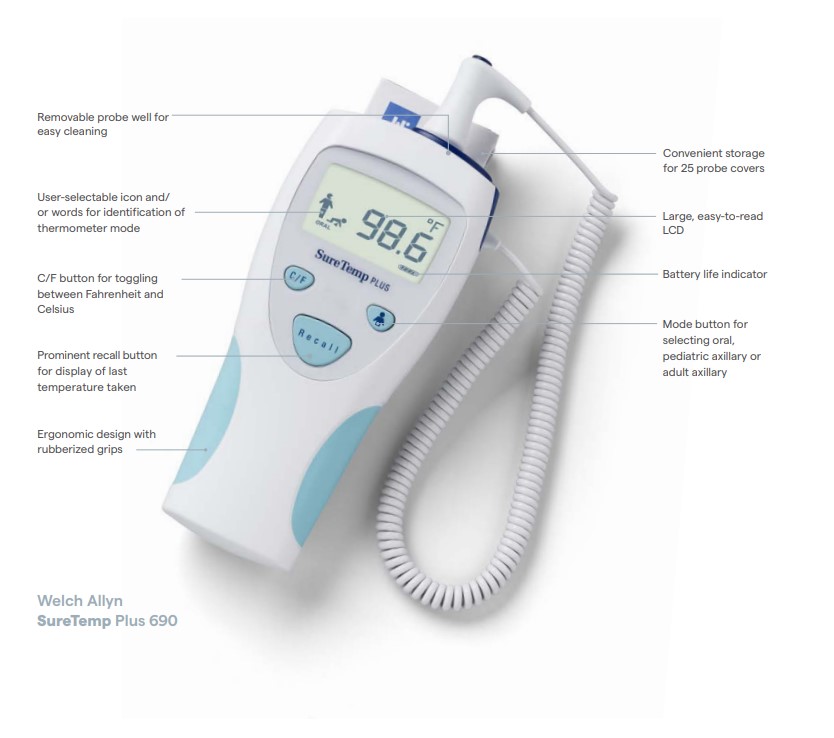

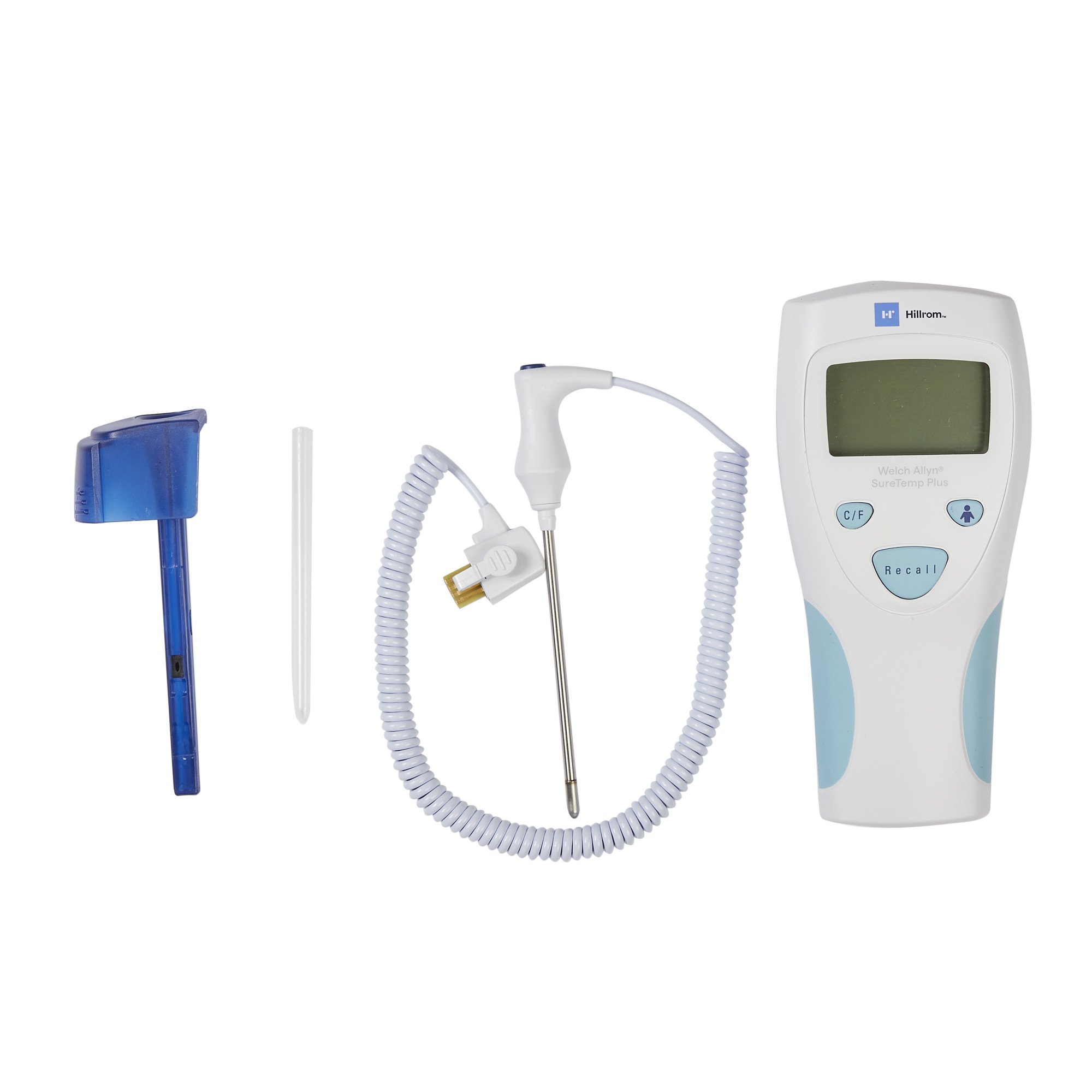

Welch Allyn SureTemp Plus 690 Thermometer (1/EA)
Welch Allyn SureTemp Plus 690 Handheld Electronic Thermometer with Interchangeable Oral Probe Well, Oral Probe with 4.0 ft/1.2 m Cord, Last Temperature Recall; 3 Alkaline AA Batteries, provides 4-6 Second Oral, 10-13 Second Pediatric Axillary, and 12-15 Second Adult Axillary Temperature Readings in Fahrenheit or Celsius.
Features
- Large LCD displays in Fahrenheit or Celsius.
- Convenient storage for 25 probe covers.
- Last temperature recall button.
- Captures about 6,000 readings on 3 AA batteries.
- Optional security wall mount protects against theft.
- Approximately 4-6 second oral readings, 10-13 second pediatric axillary and rectal readings and 12-15 second adult axillary readings.
The thermometer is intended to be used by healthcare professionals only; typically, in a hospital, clinic, long-term care, or mobile health care environment. It is not intended for home use.
For the State of California:
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Rally # | 52-4-1690 |
Manufacturer # | 01690-200 |
GTIN | 00732094029352 |
Brand | SureTemp |
Manufacturer | Baxter / Hillrom / Welch Allyn |
Country of Origin | Unknown |
Application | Electronic Probe Thermometer |
Equipment Classification | Internally Powered Device, Continuous Operation Not AP or APG Equipment |
Display Type | LCD Display |
Measuring Scale | Fahrenheit / Celsius |
Mounting Type | Handheld |
Applied Part | Thermometer Probe |
Probe Type | Oral Probe |
Probe Cord Length | 4.0 ft (1.2 m) |
Calibration Accuracy | ±0.2 °F (±0.1 °C) (Monitor Mode) |
Operating Altitude | -557 ft. to +16,000 ft / -170m to +4877m |
Temperature Predict Time | Oral: Approximately 4-6 seconds Adult Axillary (18 years and older): Approximately 12 - 15 seconds Pediatric Axillary (17 years and younger): Approximately 10 - 13 seconds Rectal: Approximately 10 - 13 seconds |
Unit Dimensions | 8.46" x 3.18" x 2.43" (215 mm x 81 mm x 62 mm) |
Weight | 12.6 oz (357 g) |
Ambient Temperature Range | 50.0 °F (10 °C) to 104 °F (40.0 °C) |
Patient Temperature Range | 80.0 °F (26.7 °C) to 110 °F (43.3 °C) |
Power Source | (3) 1.5 Vdc AA batteries [Included with Unit] |
Battery Life | Approximately 6,000 temperatures |
Transport/Storage Temperature | -13°F to +131°F (-25°C to +55°C) |
Humidity | 15% to 95% non-condensing |
IPXØ | Not protected against the ingress of water. |
UNSPSC Code | 42182201 |
Warranty | Two-year Limited Warranty |
690 Model Configurations:
01690-200 | SureTemp Plus 690 Electronic Thermometer, Handheld, Oral Probe Well, and Oral Probe with 4ft cord |
01690-201 | SureTemp Plus 690 Electronic Thermometer, Handheld, Rectal Probe Well, Rectal Probe with 4ft cord |
01690-300 | SureTemp Plus 690 Electronic Thermometer, One per room, Wall Mount, Oral Probe Well, Oral Probe with 9ft cord |
01690-301 | SureTemp Plus 690 Electronic Thermometer, One Per Room, Wall Mount, Rectal Probe Well, Rectal Probe with 9ft cord |
01690-400 | SureTemp Plus 690 Electronic Thermometer, Wall Mount, Oral Probe Well, Oral Probe Well with 4ft cord |
01690-700 | SureTemp Plus 690 Electronic Thermometer, Mobile Stand, Oral Probe Well, Oral Probe with 9ft cord |
Comprehensive Partnership Service
S1-M690 | 1 Year Comprehensive Partnership Service Agreement |
S1-M690-2 | 2 Year Comprehensive Partnership Service Agreement |
Comprehensive Partnership Service Agreement:
- Hardware(HW) and software(SW) support
- Covers Accidental Damage
- Priority Phone Line for Technical Support
- Device Exchange
- Accessory Protection
- Expedited Service Availability (Delivery Times May Vary By Region)
- Free Shipping
Accessories and Replacement Probe Covers
21326-0000 | Wall Holder |
21330-0000 | Holder for Spare Probe and Well |
01802-110 | Thermometer Calibration Tester |
06138-000 | Calibration Key Assembly, 690/692 |

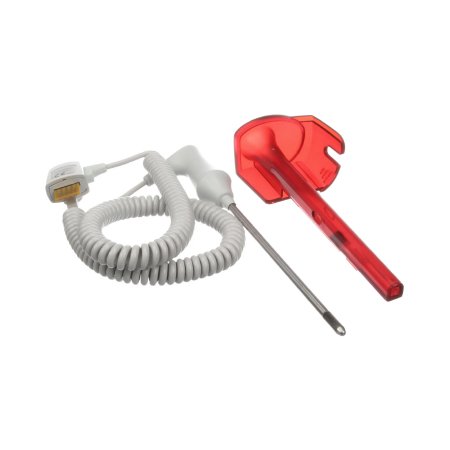

02892-000 | Probe and Well Kit, 4ft, Rectal |
02892-100 | Probe and Well Kit, 9ft, Rectal |

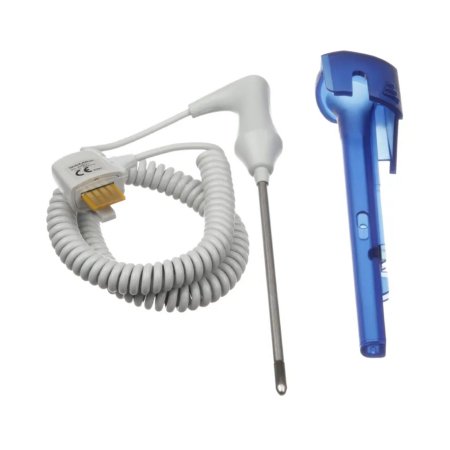

02893-000 | Probe and Well Kit, 4ft, Oral |
02893-100 | Probe and Well Kit, 9ft, Oral |
02891-0000 | Probe Well, Blue |
02891-1000 | Probe Well, Red |
08273-000 | Thermometer Stand with Holder for Spare Probe and Well |
21333-0000 | Bracket, M600 Stand Upgrade, with Holder for Spare Probe and Well |
05031-101 | Case of 1,000 Probe Covers |
Brochure
- Welch Allyn SureTemp Plus 690 Electronic Thermometer, Sales Brochure
- Welch Allyn SureTemp Plus Electronic Digital Thermometer Family Brochure
- Operation and Technique Welch Allyn SureTemp Plus 690/692 Electronic Thermometers
- Capturing Oral Temperature with Welch Allyn SureTemp Plus 690/692 Electronic Thermometers
- Capturing Rectal Temperature with Welch Allyn SureTemp Plus 690/692 Electronic Thermometers
- Capturing Pediatric Axillary Temperature with Welch Allyn SureTemp Plus 690/692 Electronic Thermometers
- Capturing Adult Axillary Temperature with Welch Allyn SureTemp Plus 690/692 Electronic Thermometers
