Rally #52-4-5090
Baxter/Hillrom/Welch Allyn #5090-02
Welch Allyn Platinum Series DS48A Pocket Aneroids (1/EA)

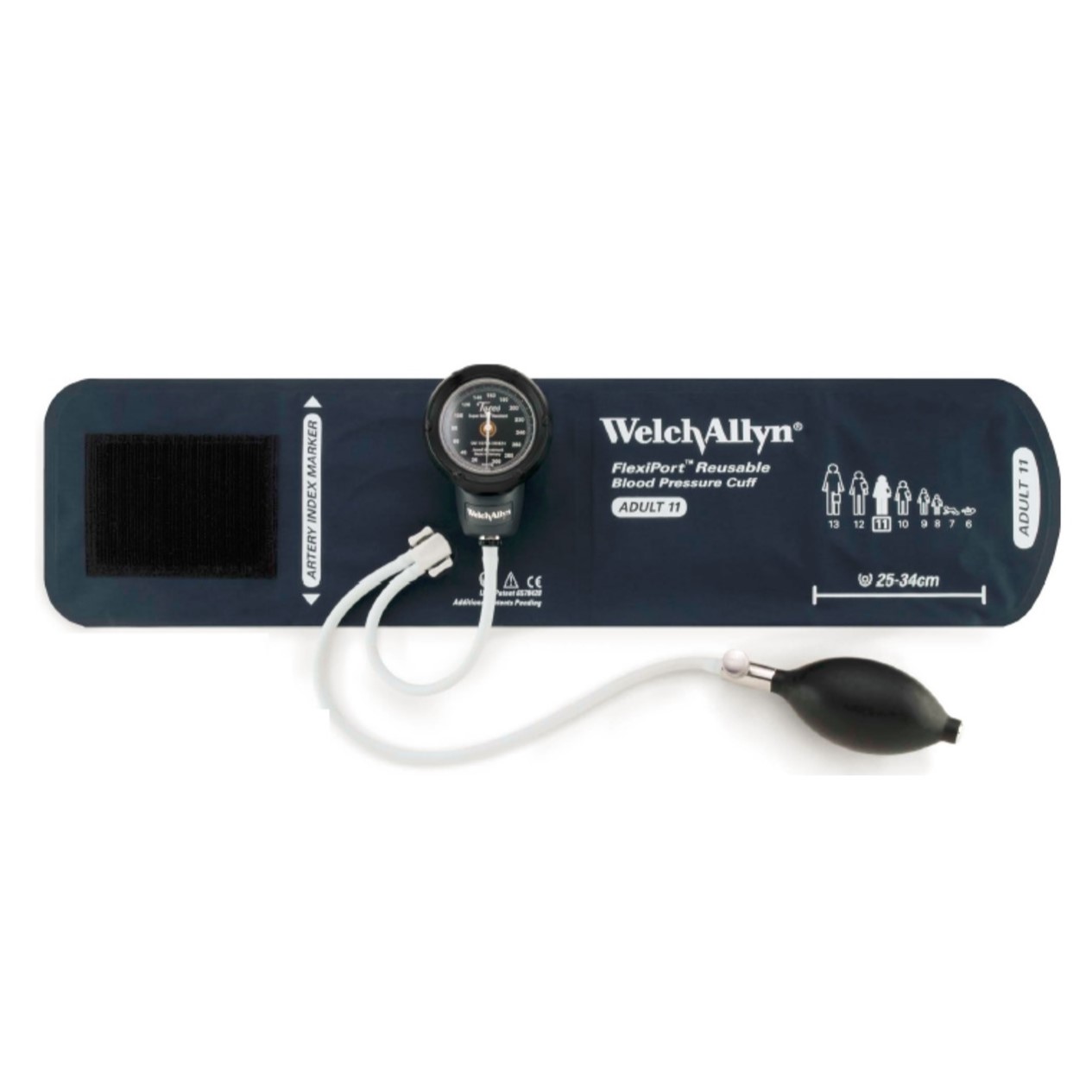

Welch Allyn Tycos DS48 Pocket Aneroid Sphygmomanometer with DuraShock Gear Free, Super Shock Resistant Technology; Jewel Movement, Laser Engraved Dial, Lifetime Calibration Warranty; Premium Inflation Bulb and Valve, Zipper Case; Size-11 Adult, FlexiPort Reusable, 2-Tube Cuff.
Features
- Gear-free Durashock Technology
- Certified Accuracy To +/- 3 mmhg
- Unsurpassed Reliability In A Lightweight, Pocket-style Design
- Withstands A 60" Drop, Exceeds AAMI's Shock Resistant Requirement
- Premium Inflation System, and Lightweight For Patient Comfort
- Laser-engraved Dial Face for Accuracy
- Lifetime Calibration Warranty
- Jeweled Movement for Long Life
- Latex-free For Safety
This lightweight pocket-style gauge has a metal clip that attaches to the cleat on a two-tube cuff. With gear-free DuraShock technology, you can count on the robust design of the DS48 Pocket Aneroid to remain in calibration longer than traditional aneroids, providing more accurate readings over time and a lower lifetime cost, helping to improve practice efficiencies and your bottom line.
Note: Welch Allyn non-automated sphygmomanometers are contraindicated for neonate use.
CAUTION: U.S. federal law restricts this device to sale by or on the order of a physician or licensed healthcare practitioner. This device should be used by trained personnel.
For the State of California:
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Rally # | 52-4-5090 |
Manufacturer # | 5090-02 |
GTIN | 00732094110609 |
Brand | Tycos |
Manufacturer | Baxter / Hillrom / Welch Allyn |
Country of Origin | Unknown |
Application | Aneroid Sphygmomanometer Unit |
Cuff Range | 25 - 34 cm |
Display Type | Dial Display |
Number of Tubes | 2-Tubes |
Power Source | Manual Inflation |
Size | 11 - Adult Cuff |
Style | Pocket Aneroid |
Target Area | Arm |
UNSPSC Code | 42181601 |
Usage | Reusable |
User | Adult |
Accuracy | ± 3 mm Hg. |
Operational Range | 0 to 300 mmHg |
Displayed Range | 0 to 300 mmHg |
Indication Type | Radial Scale |
Scale Graduation | Increments of 2mmHg |
Pointer Movement | No Stop Pin |
Tube Adapter | Integrated, 1, or 2 Tube Adapter |
Pressure Generation | Bulb |
Pressure Reduction | Air Release Valve |
Warranty | Ten Year Warranty |
Note: Specification information are base on bulb inflation/valve deflation system in combination with 0, 1, or 2 tube cuff attachment systems.
Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
Storage Relative Humidity | 15% to 95% (Noncondensing) |
Operating Temperature | 10 °C to 40 °C (50 °F to 104 °F) |
Operating Relative Humidity | 15% to 90% (Noncondensing) |
Configurations
5090-02 | Pocket Gauge with Inflation Bulb and Valve, Adult FlexiPort Reusable Cuff, 2-Tube and Case |
5090-02CB | Pocket Gauge with Inflation Bulb and Valve, Adult 2-PC Reusable Cuff, 2-Tube and Case |
5090-41 | Pocket Gauge with Inflation Bulb and Valve, Large Adult FlexiPort Reusable Cuff, 2-Tube and Case |
5090-41CB | Pocket Gauge with Inflation Bulb and Valve, Large Adult 2-PC Reusable Cuff, 2-Tube and Case |
DS48A | Pocket Gauge Only |
DS48-11CB | Pocket Gauge with Adult 2-PC Reusable Cuff, 2-Tube and Case |
Parts and Accessories
5085-10 | Small Nylon Zipper Case for DS48, DS48A and DS58 Aneroids |
5086-01 | Premium Inflation Bulb; Small; Black |
5086-03 | Premium Inflation Bulb; Large; Black |
5087-01 | Blood Pressure Air release valve |
5088-01 | Blood Pressure Air Release Valve with Small Inflation Bulb |
Documentations
- DuraShock Products, Brochure
- Blood Pressure Accuracy and Variability, Quick Reference Guide
- Manual Device Replacement Blood Pressure Cuff, Quick Reference Guide
- Sphygmomanometer Gauge Calibration and Product Warranty Information, Reference
- Durashock and 767 Wall and Mobile Aneroid Sphygmomanometer Gauges, User Manual, Multi-Language
Currently Not Available
Related Video Links
Size: Adult
