Rally #52-4-2400
Baxter/Hillrom/Welch Allyn #2400

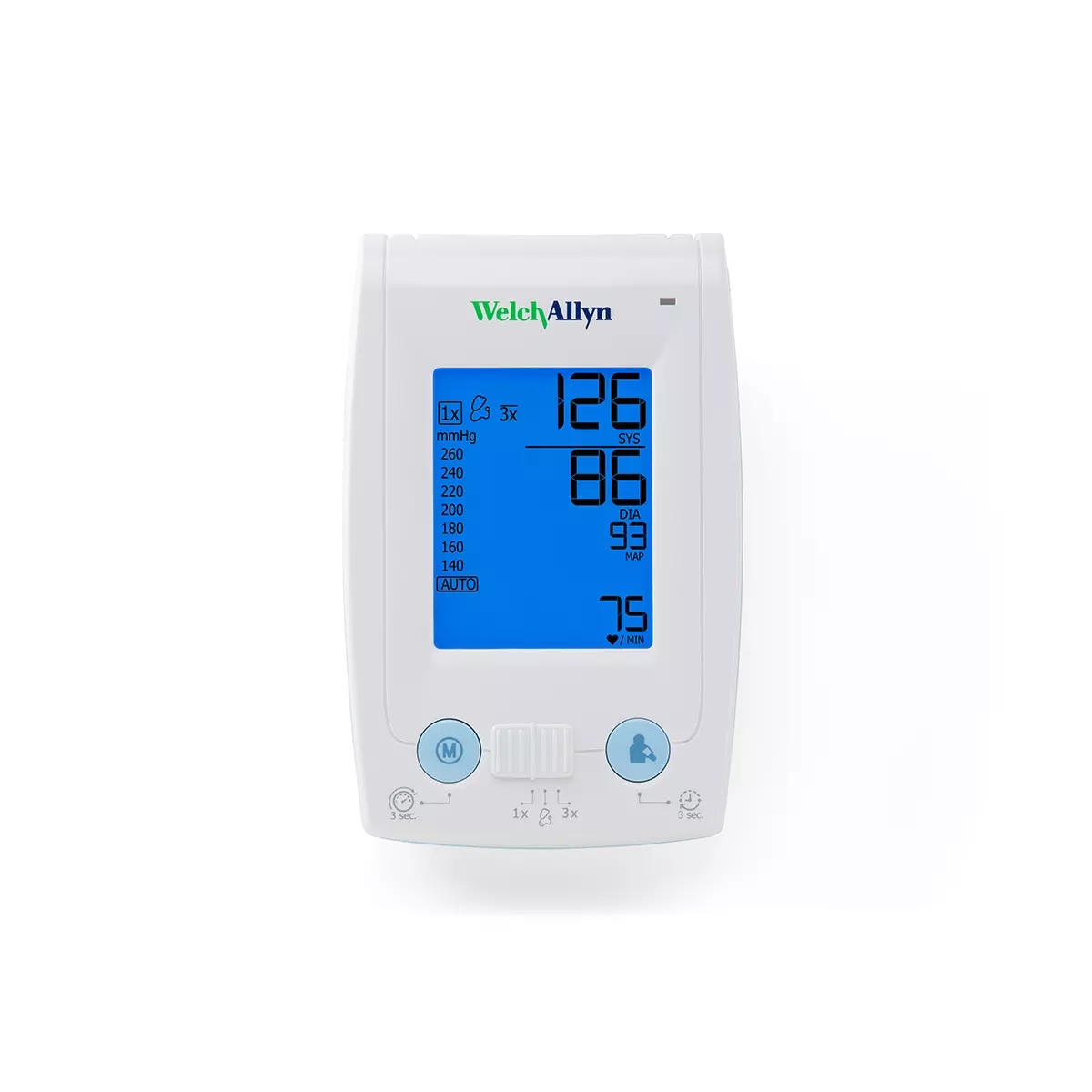

Welch Allyn ProBP 2400 Digital Blood Pressure Device (1/EA)

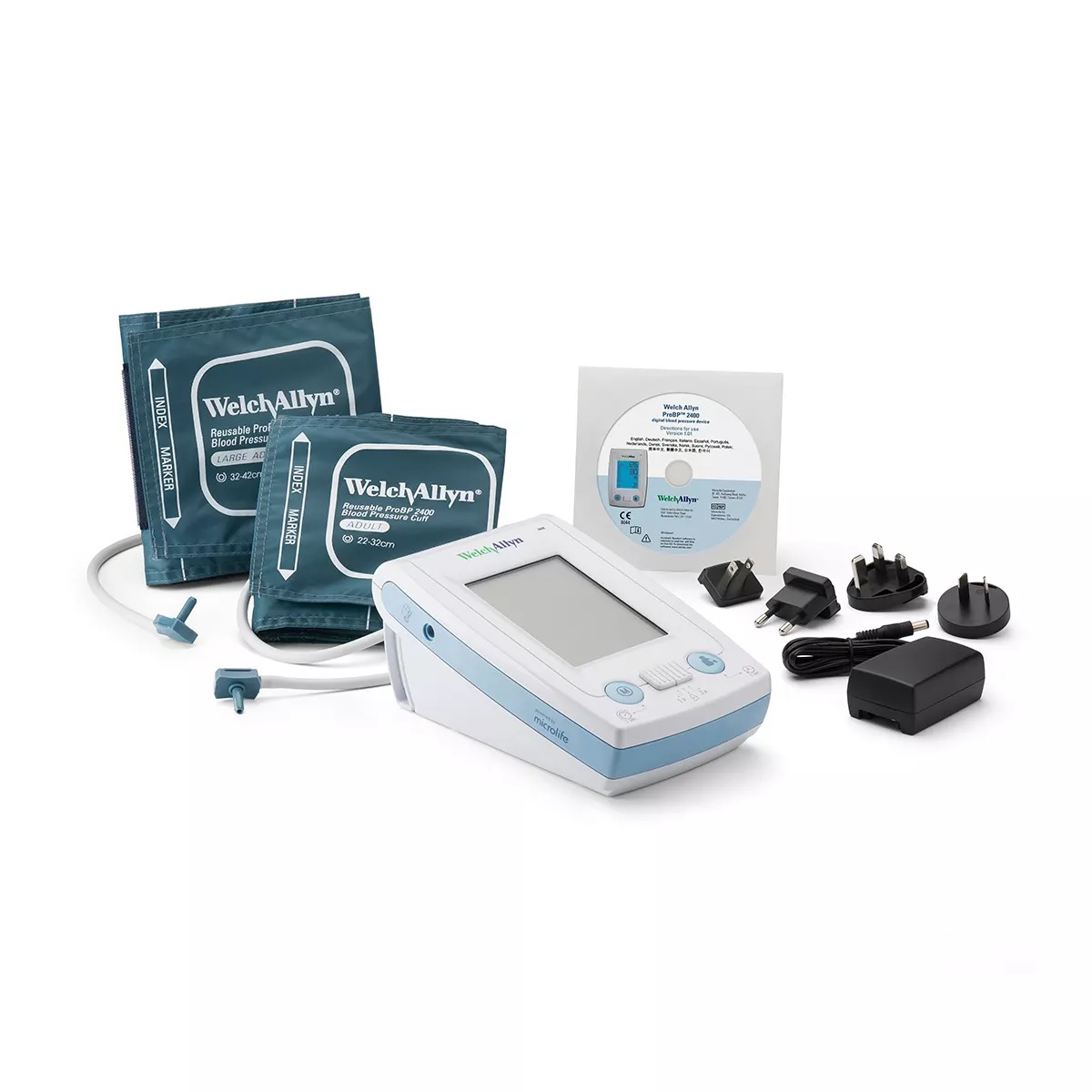

ProBP 2400 Digital Blood Pressure Device (Includes ProBP 2400 Device with 2,400 mAh NiMH battery (installed), (1) Adult Cuff, (1) Large Adult Cuff, (1) Power Supply with (4) Mains Blade Adapters (US, UK, EU, AU), Directions for Use CD and Calibration Certificate.)
Features
- Irregular heartbeat detection provides data to help you make testing decisions.
- Microprocessor-controlled deflation rate provides consistent technique.
- Three-Reading Average Mode can give a broader view of patient’s true blood pressure.
- Manual Mode allows ProBP 2400 to serve as a digital gauge when auscultation is indicated.
- Lithium ion battery technology delivers up to 100 readings on a single charge.
CAUTION: Federal law restricts this device to sale by or on the order of a physician or licensed healthcare provider.
For the State of California:
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
×
| Rally # | 52-4-2400 |
| Manufacturer # | 2400 |
| GTIN | 00732094211078 |
| 510K# | K143341 |
| Brand | ProBP 2400 |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | China |
| Application | Automatic Digital Blood Pressure Monitor |
| Style | Desk Model |
| Operation Temperature/Humidity | 10 to 40 °C (50 to 104 °F) / 15-90% relative humidity |
| Storage Temperature/Humidity | -20 to 55 °C (-4 to 131 °F) / 15-90% relative humidity |
| Weight | 800g (1.7 lbs) |
| Dimensions | 200 mm x 125 mm x 90 mm (7.9” x 4.9” x 3.5”) |
| Measuring Method | Oscillometric Systolic Blood Pressure (SYS) = K1 Diastolic Blood Pressure (DIA) = K5 |
| Measurement Range Blood Pressure | SYS 60 to 255 mmHg DIA 30 to 200 mmHg Mean Arterial Pressure 35 to 240 mmHg Pulse: 40 to 200 BPM |
| Cuff Pressure Display | 0 to 299 mmHg |
| Cuff Pressure Display | Resolution 1 mmHg |
| Display Size (W x H) | 75 mm x 96 mm |
| Display Type | Backlit 13 Segment LCD |
| Parameters Displayed | Systolic Blood Pressure (SYS) Diastolic Blood Pressure (DIA) Mean Arterial Pressure (MAP or PAM) Pulse Rate |
| Clinical Graphic Indicators | Pulse Detected Irregular Heartbeat Detected Interval Countdown Timer |
| Device Graphic Indicators | Mains Power Applied Low Battery |
| Controls | Main Power Switch Start/Stop Button Memory Button Mode Selection Switch |
| Static Pressure (Transducer) Accuracy | ± 3 mmHg |
| Pulse Accuracy | ± 5% |
| Mains Power Supply | Input: 100-240V~50/60Hz 0.48A Output: 7.5VDC, 1.5A Set of 4 Mains Blade Adapters (US, UK, EU, AU) Power Cord Length: 6’ |
| Battery (Standard) | Rechargeable NiMh 4.8V 2400mAh |
| Battery (Optional) | Rechargeable NiMh 4.8V 3500mAh |
| Battery Service Life | >500 full recharge cycles |
| Battery Recharge Time | 5.5 hours at 20 °C (Standard Battery) 8 hours at 20 °C (Optional Battery) |
| BP Cycles Per Charge | 600 - 700 (Standard Battery) 875 - 1,020 (Optional Battery) |
| Battery Charge State LED | Green – Fully Charged Orange – Charging in Progress Off – No Mains Power Applied |
| Clinical Modes | Single Reading Three Reading Average Manual (Auscultatory) |
| Interval Options (3-reading avg. mode) | 60-second delay before first reading 15, 30, 45 or 60 seconds between readings |
| Maximum Initial Inflation Pressure | Auto, 140, 160, 180, 200, 220, 240, 260 mmHg |
| Standard Blood Pressure Cuffs (Included) | Adult (22 to 32 cm) Large Adult (32 to 42 cm) |
| Optional Blood Pressure Cuffs | Child (14 to 22 cm) Large Adult Long (32 to 52 cm) |
| Cuff Tube Length | 122 cm (48”) |
| Special Patient Populations | Validated for use in Pregnancy and Preeclampsia |
| Mounting Options | Mobile Stand Wall Mount Bracket – Compatible with Welch Allyn Integrated Wall System |
| Warranty | Two Year Warranty |
×
Configurations
Configurations
| 2400 | ProBP 2400 Digital Blood Pressure Device |
×
Parts and Accessories
Parts and Accessories
| 2400-BATT | Replacement Battery |
| 2400-HCBAT | High-Capacity Battery |
| 2400-MS | Mobile Stand |
| 2400-PS | Power Supply |
| 2400-WMB | Wall Mount Bracket, includes (1) 24” BP Cuff Extension Tube (5082-197) |
| 5082-197 | Blood Pressure Cuff Extension Tube (24 in/61 cm) |
| REUSE-09-2400 | Blood Pressure Cuff, Child (14 - 22 cm) |
| REUSE-11-2400 | Blood Pressure Cuff, Adult (22 - 32 cm) |
| REUSE-12-2400 | Blood Pressure Cuff, Large Adult (32- 42 cm) |
| REUSE-12L-2400 | Blood Pressure Cuff, Large Adult Long (32 - 52 cm) |
×
Documentation Links
Documentation Links
- Pro BP 2400 Mobile Stand, Assembly Guide
- Welch Allyn ProBP 2400 Digital Blood Pressure Device, Brochure
- ProBP 2400 Mobile Stand; Declaration of Conformity
- ProBP 2400 Cuff, Declaration of Conformity
- ProBP 2400 High Capacity Battery Installation
- ProBP 2400 Digital Blood Pressure Device, Specification Sheet
- ProBP 2400, User Manual
- Manual de Usuario, Esfigmomanómetro Digital ProBP 2400
×
