Screener, VS100 Spot Vision Screener w/ Carrying Case and 8 ft US Power Cord [2.5A, 125V] (1/EA) by Hillrom/Welch Allyn ID VS100S-B

45-1-1185

Stock Est. Shipping Date: 5th May 2025 ⓘ

Screener, VS100 Spot Vision Screener w/ Carrying Case and 8 ft US Power Cord [2.5A, 125V] (1/EA)
Sold by: EA OF 1

 Reviews
Better together

  • Total: $0.00
Add to wishlist
Add to comparison chart | Compare Products

Rally #45-1-1185
Baxter/Hillrom/Welch Allyn #VS100S-B
Welch Allyn Spot Vision Screener (1/EA)

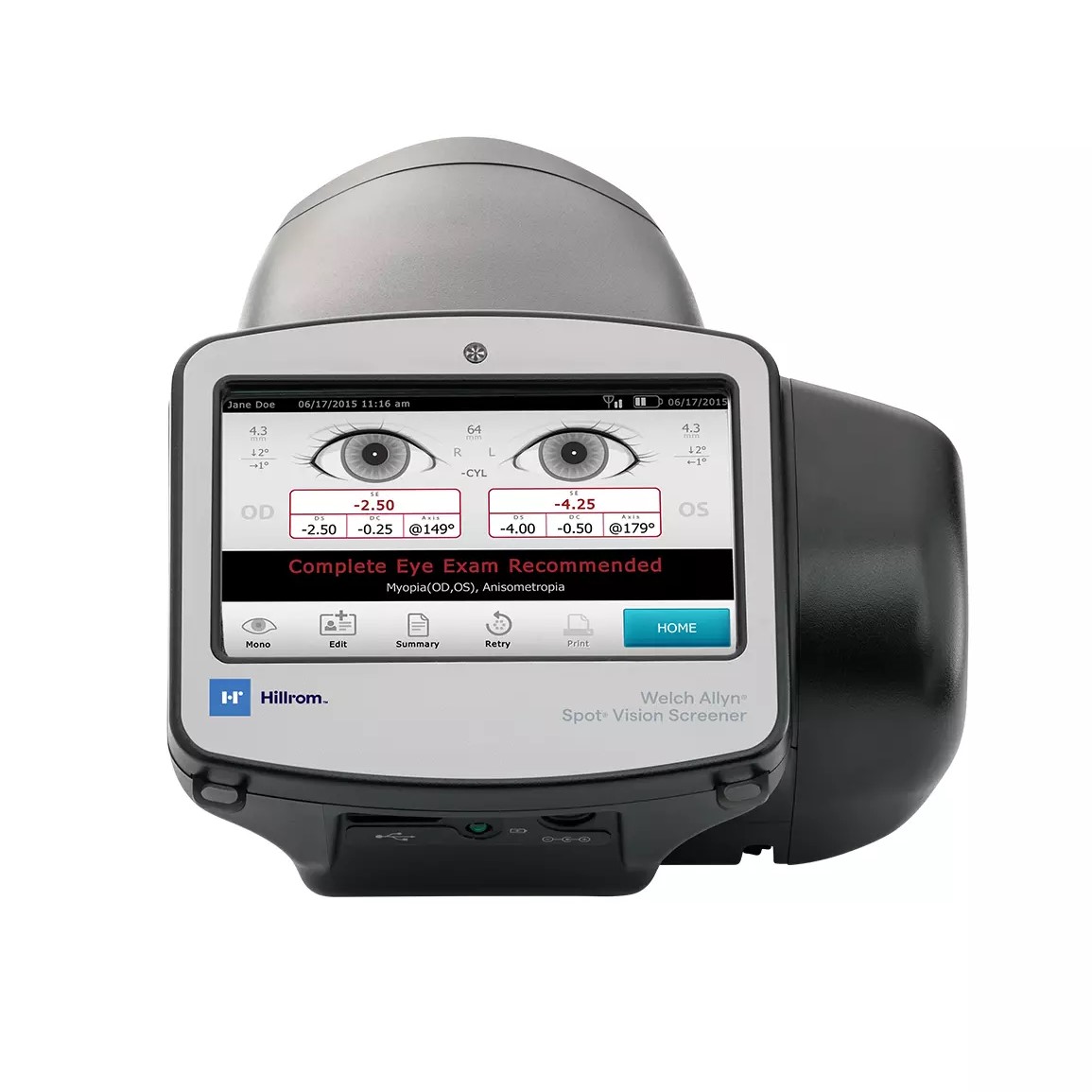

Welch Allyn VS100 Spot Vision Screener with Carrying Case and 8' (2.5m) US Power Cord (2.5A, 125V).

2024 Spot Vision Screener Trade-In

Exclusive Upgrade Offer For Vision Screener Owners

Upgrade To The Latest Technology With The Welch Allyn Spot Vision Screener

Trade In Your Old Vision Screener Now To Receive A $1,000 Rebate

Offer Valid On Purchases from January 1 - December 31, 2024 Only


See Details Below
Features
  • A handheld, portable ocular screening device designed to identify risk factors of amblyopia vision issues in patients as young as six months old.
  • Evaluates light reflexes from the retina to estimate refractive error, pupil size, pupil distance, and eye gaze deviation.
  • Automatically captures images from a non-invasive, three-foot distance using fixation target and sounds.
  • Displays results quickly, indicating whether measurements are in range or a complete eye exam is recommended.
  • EMR integration available for Epic and Cerner with the SpotConnect EMR application.
  • Captures readings 97% of the time to help screen otherwise difficult subjects.
  • Built-in driverless printing for efficient screening experience.
  • Summary reports automatically uploaded with SpotConnect, exported wirelessly or via USB.
The Spot Vision Screener is a portable device used to screen for vision issues in patients as young as six months old. It quickly collects data for evaluation, providing simultaneous assessment of refraction, pupil size, and gaze. It helps identify refractive errors and ocular misalignments by detecting light reflexes. The device is intended for use by healthcare professionals to refer individuals for further evaluation or monitoring.

Important Notes:
  • Rx Only
  • Product is non-returnable; please make sure it is the right product before ordering.
  • Warning: Product is considered HAZMAT and cannot ship via Air or to AK, GU, HI, PR, VI.
For the State of California:
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

×
Rally #45-1-1185
Manufacturer #VS100S-B
GTIN00732094212228
BrandWelch Allyn® Spot®
ManufacturerBaxter / Hillrom / Welch Allyn
Country of OriginUnknown
ApplicationEye Exam Instrument
InstrumentType
Dimensions8 1/2 in x 6 3/4 in x 4 3/4 in (21.6 cm x 17.1 cm x 12.1 cm)
Weight~2.55 lbs (1157 g)
Wireless Network802.11 a/b/g/n
Expected Battery Life2.5 years (under normal usage)
UNSPSC Code42183034
WarrantyOne Year Warranty
ItemSpecification
MFGFRIWO
ModelFW8030M/DT/15
Input Voltage90 – 264VAC (100 – 240VAC Nominal) +/- 10%
Input Frequency47 – 63 Hz
Input Current0.6-0.3Arms @ Max Load
Avg. Efficiency≥87% (Energy star level "VI")
Infrared radiation (light)850 nm, < 2mw/cm2
Operating Temperatures50°F to 104°F (+10°C to +40°C)
Operating Humidity30% to 95% relative humidity (non-condensing)
Operating Atmospheric Pressure800 hPA to 1060 hPA
Storage/Shipping Temperatures32°F to 122°F (0°C to +50°C)
Storage/Shipping Humidity10% to 95% relative humidity (non-condensing)
Storage/Shipping Atmospheric Pressure700 hPA to 1060 hPA
Spherical EquivalentRange: -7.50D to +7.50D in 0.25D increments
Accuracy: -3.50D to 3.50D, ± 0.50D; -7.50D to < -3.50D, ± 1.00D; > 3.50D to 7.50D, ± 1.00D
CylindricalRange: -3.00D to +3.00D in 0.25D increments
Accuracy: -1.50D to 1.50D, ± 0.50D; -3.00D to < -1.50D, ± 1.00D; > 1.50D to 3.00D, ± 1.00D
Cylindrical AxisRange: 1 to 180 degrees in 1 degree increments
Accuracy: ± 10 degrees (for cylinder values > 0.5D)
Pupil Size3.0 mm to 9.0 mm in 0.1 mm increments in ± cylinder*
Accuracy: ± 0.4 mm
Pupil DistanceRange: 35 mm to 80 mm in 1 mm increments
Accuracy: ± 1.5 mm
Gaze Measurement0 to 20 degrees in increments of 1 degree nasal, temporal, inferior and superior
Accuracy: ± 1.5 degrees
Time Per MeasurementSecond(s)
Measuring Distance3.3 ft ± 2 in (1 m ± 5 cm)
Fixation TargetRandom visual pattern and audible sound
Measurement PrincipalOptical reflex

×
Configurations & Services
S1-VS1001 Year Comprehensive Partnership Service Agreement
S1-VS100-22 Year Comprehensive Partnership Service Agreement
S1-VS100-55 Year Comprehensive Partnership Service Agreement
VS100S-BWelch Allyn VS100 Spot Vision Screener with Carrying Case and 8' (2.5m) US Power Cord (2.5A, 125V)
×
Accessories
106144Spot Vision Screener Carrying Case
106145Spot Vision Screener Neck Strap
106146Spot Vision Screener Wrist Strap
106369Spot Vision Screener Power Supply Set (Includes Wall Charger w/ Connector, and Power Cord)
×
Promotions Information

2024 Spot Vision Screener Trade-In

Exclusive Upgrade Offer For Vision Screener Owners
Upgrade To The Latest Technology With The Welch Allyn Spot Vision Screener

Trade In Your Old Vision Screener Now To Receive A $1,000 Rebate

Offer Valid On Purchases from January 1 - December 31, 2024 Only

Steps To Receive Your Upgrade Offer:
1. Purchase Spot Vision Screener (VS100S-B or VS100SH-B) through Rally Inc.
2. After purchase, visit hillrom.com/svsupgrade to redeem your rebate (you will need a W-9, photo of trade-in device with serial number or UPC label visible, and proof of purchase for new device).

Note: The customer will receive a Proof of Purchase from Rally Inc. after purchasing the product. However, the promotional offer is handled solely between you, the customer, and the manufacturer, Baxter / Hillrom / Welch Allyn. Rally Inc. does not oversee these offers. To check eligibility for the promotion and receive your rebate, please follow the manufacturer's online instructions.



You can find more information for this promotion here.
